Product Introduction

ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel cherry trail Z8350
RAM/ROM 4GB/64GB
LCD 5.5 inch 1080X1920, 500nits
Touch screen 5 point touch, support stylus
Camera 5M MIPI/5MP(OV5648)
Power and battery battery  capacity 5000mAh
WWAN 4G LTE, 3G WCDMA, GSM EC-25 EG91
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: 900/1800MHz
GPS baidou,GPS, glonass, U-blox ONE
wifi 802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G Intel Stone Peak3165  802.11ac 1x1+BT4.0
BLUETOOTH 4.0 version
NFC 13.56 MHz, distance 5cm or above
SPEAKER 1.5 watt
Sensor 1. light sensor
Dimension 181*85*20mm
Multi-media
(Hardware decoding)
Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language  multi language
interface
in/out port
1.micro USB*1 otg + 1*USB 3.0
2. bottom pogopin*1, USB
3. back pogopin*1 USB
4. DC 3.5*1.35

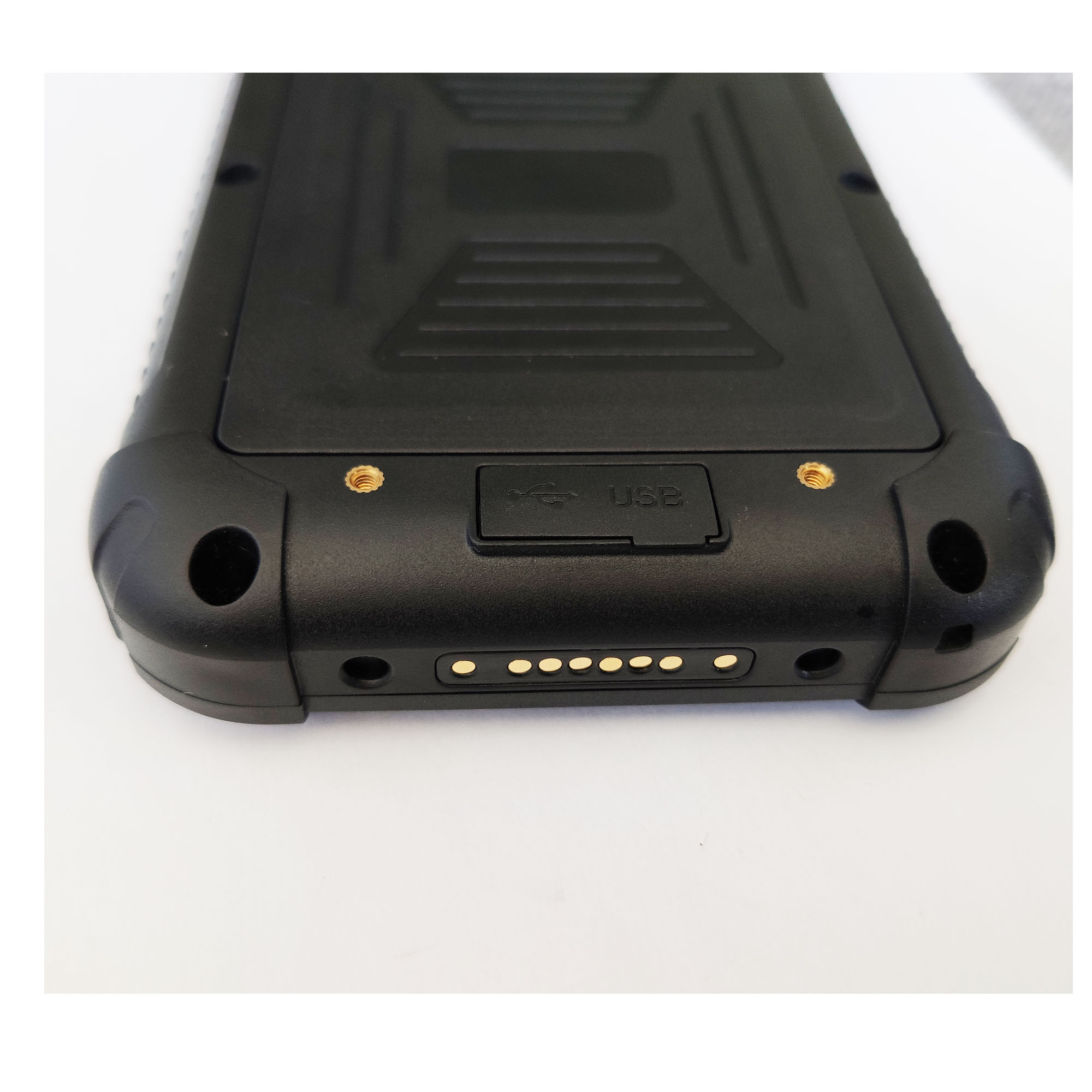

Pogopin definition 1.8 pin back, included(2USB, 1 RS232, 1 UART, 3.3V, 5V out put), 5V input
2. 8pin on bottom; (1*USB) 5V input
casing material ABS/PC
button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3
2D barcode module honeywell N3680

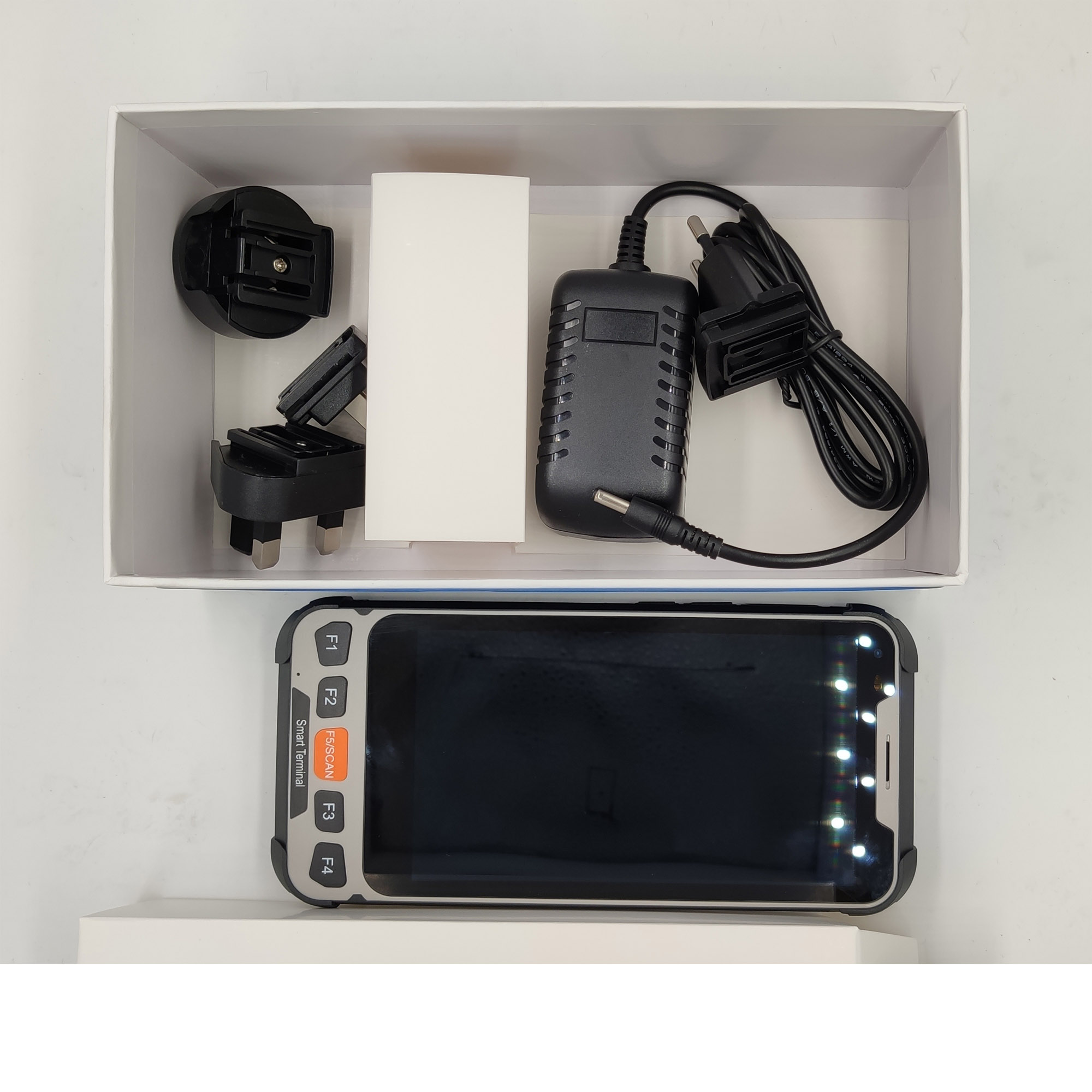

accessories 1. USB cable
2. charger
3. handstrap (optional)
4. car holder (OPTIONAL)
5. docking station (optional)
6. car charger
7. white box, no logo
proof rate 1. water proof IP67
2. Drapping proof 1.2 meter
Certification 1. 810G
2. CE,FCC
Temperature 1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
