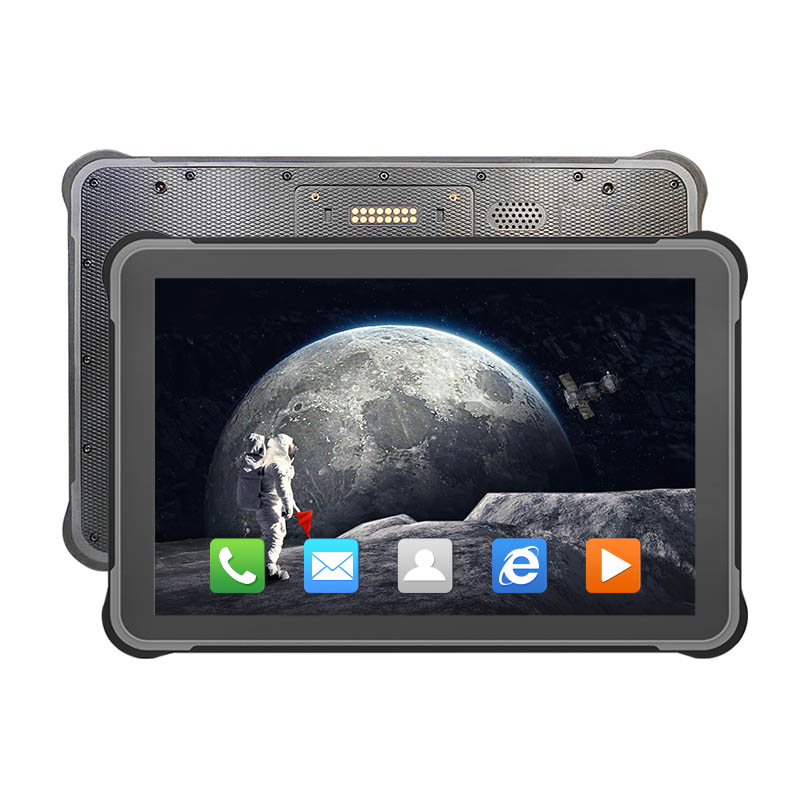

Product Introduction
OS android 13 (support GMS)
CPU 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz
RAM/ROM 8GB/256GB OR 12GB/512GB

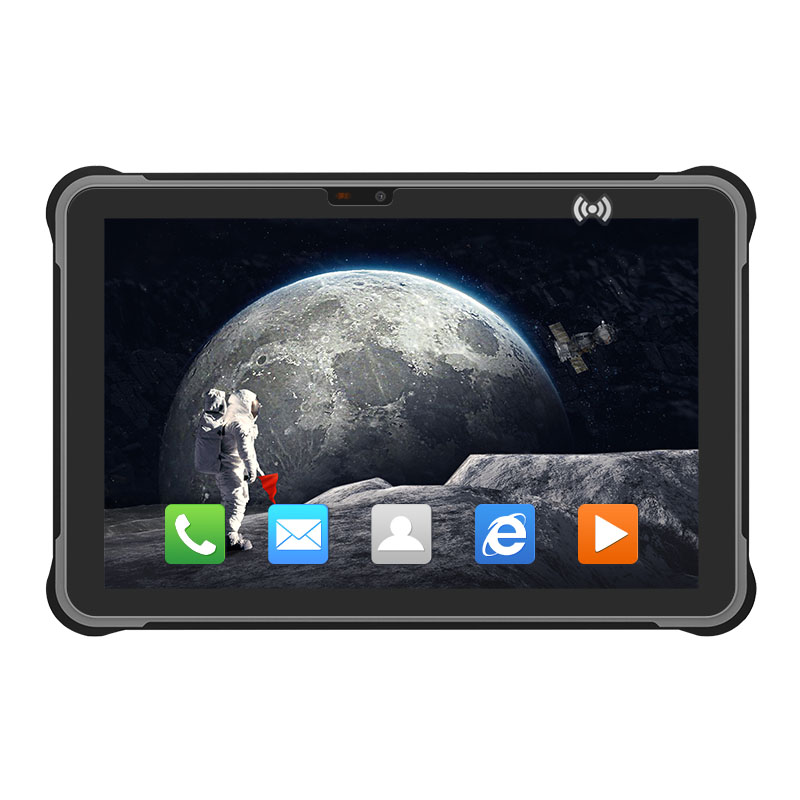

LCD 10.1 inch1920*1200；500 nits sunshine readable
Touch screen 10 point touch, support stylus
Camera 5M/13M, flash
--------------------------------------------------------------------------------------------
Power and battery
8400mAh,3.8V（12000mAh 3.8V optional）
3.5*1.35mm, 5V 3A DC in put, Support Type-c quicker charger
--------------------------------------------------------------------------------------------
WWAN
4G LTE, 3G WCDMA, GSM
4G Fre:
FDD: B1,B2, B3,B4, B5, B7, B8, B10, B12，B13, B14, b17, B20, B23, B24, B25, B26
TDD: B38,B39,B40,B41, B66, B71
B34
WCDMA:B1,B2, B5, B8
TD-SCDMA: B34,B35, B36, B37, B38 B39, B40, B41, B42, B43
GSM/GPRS/EDGE, 850/900/1800/1900
--------------------------------------------------------------------------------------------
GPS beidou+GPS+glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH 5.0 version
NFC 13.56 MHz
SPEAKER 1.5W
Sensor 1. light sensor
2. compass
3. gravity
4. acceleration
5. baroceptor
--------------------------------------------------------------------------------------------
size 275*178*18mm
language multi language
Multi-media (Hardware decoding)
Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
--------------------------------------------------------------------------------------------

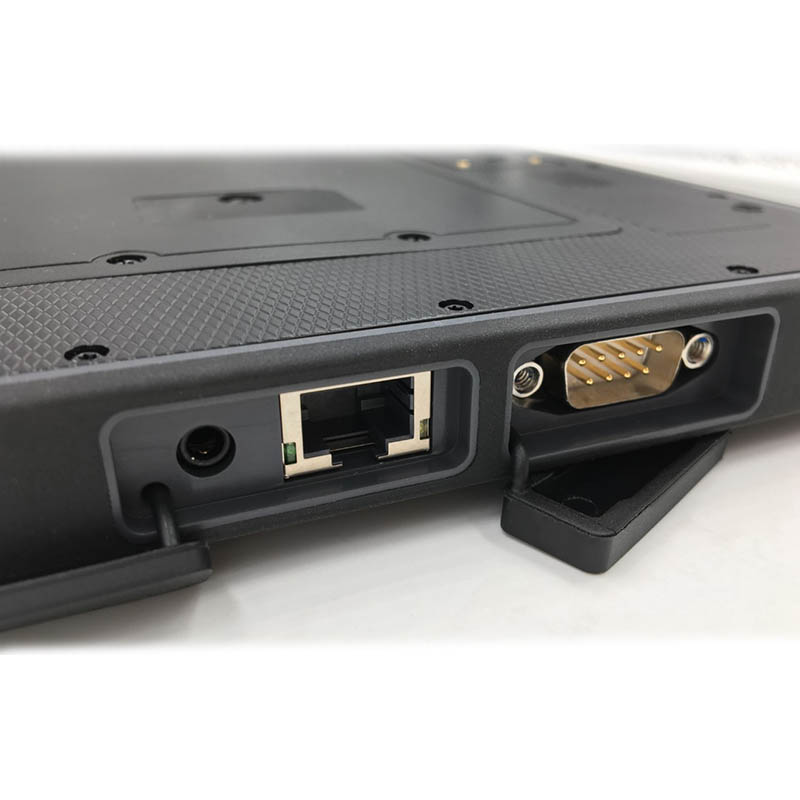

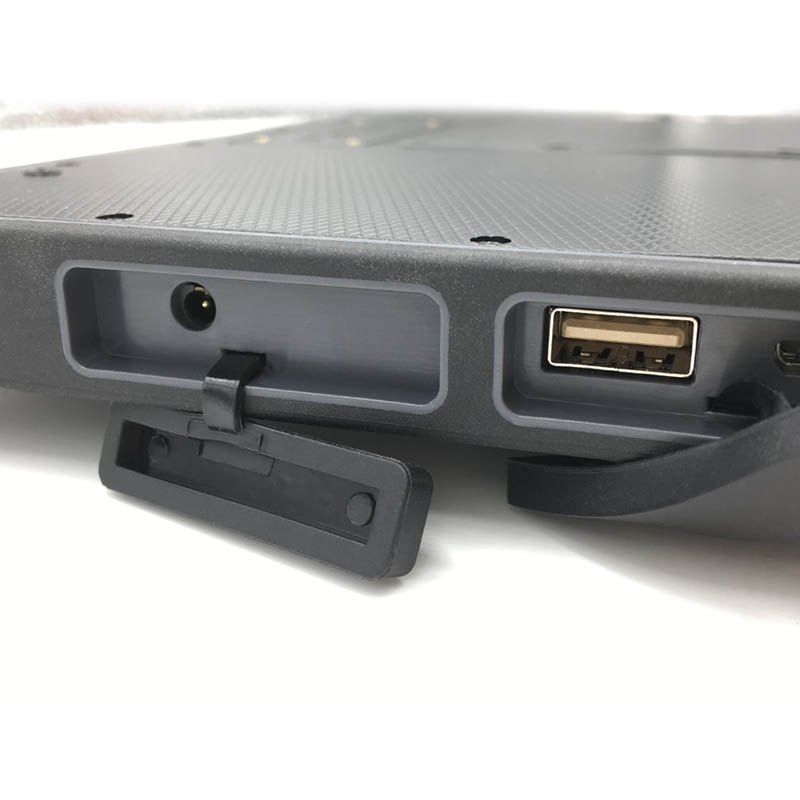

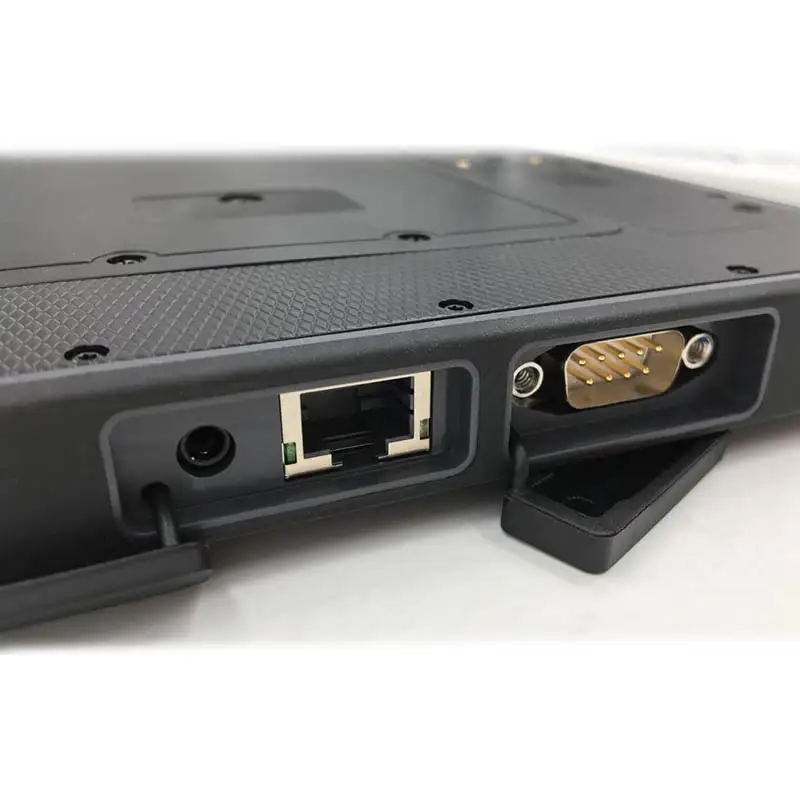

interface 1. normal USB*1
in/out port 2. Type-c USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial

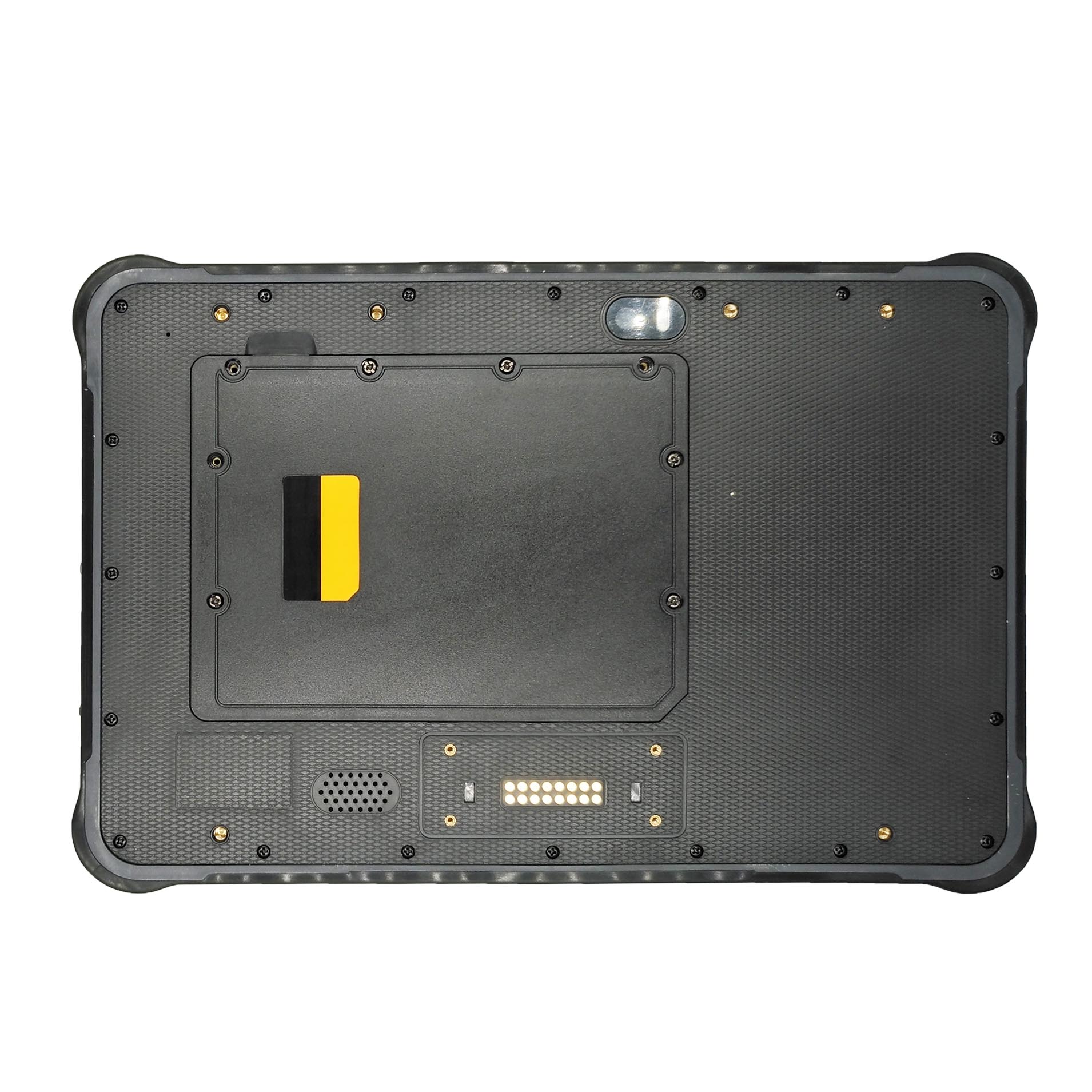

5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. RS232*1
--------------------------------------------------------------------------------------------
Pogopin definition
1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， )
VESA hole 75*75mm or 90*90mm
--------------------------------------------------------------------------------------------
casing material ABS/PC
button V+ -, Power, P, F, H
2D barcode module honeywell N4680 optional
fingerprint module LD-8800-M optional
UHF reading and write distance 1meter to 10 meter optional
--------------------------------------------------------------------------------------------
standard accessories 1. USB cable
in gift box 2. charger( 4-in-1)
3. handstrap
4. handstring
5. white box, no logo
--------------------------------------------------------------------------------------------
optional accessories 1. car docking
proof rate 2. extra battery
3. screen protective film
4. car holder
5. docking station
6. car charger
--------------------------------------------------------------------------------------------
proof rate 1. water proof IP65/IP66/IP67
2. Drapping proof 1.2 meter
Certification 1. 810G
2. CE,FCC
--------------------------------------------------------------------------------------------
Temperature 1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
