Product Introduction



Basic Parameters

Type

Android Industrial Printer Handheld Terminal

CPU

Quad-Core ARM Cortex A7 1.3GHz

Graphics Processor

Mali760-MP2

Memory

2G LPDDR2 RAM+16G EMMC ROM

OS

Android 5.1

Color

Black

Display

5'' high-resolution Multi-touch screen; Resolution: 1280*720 dpi

support 5 point finger touch and 3 tangible key

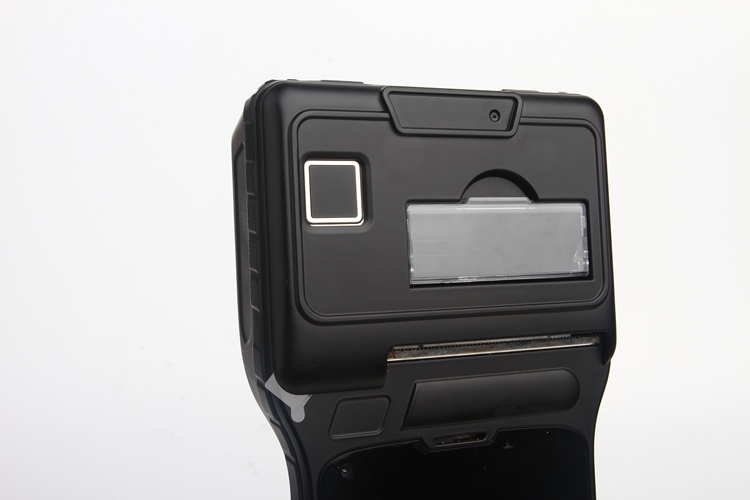

Fingerprint sensor

Sensor: FPC1020F1; Processor: FPC2020Q1 (64 pin QFN 9 * 9 mm)

Thermal printer

2'' 384 point thermal printer, velocity:15mm/s

Input Method

HandwritingStrokePinyin input method

Communication

GSM/WCDMA/FDD/TDS/TDD;

GSM Quad Band, TDS B34/39, WCDMA B1/2/5/8, TDD B38/39/40, FDD B1/3/7/8/20

GPS

Built-in GPS, support A-GPS, GPS+BDS, Meter Level Localization

Port

Micro USB2.0, support OTG

Memory Interface

Micro SD card; expansion: 2G to 32G

Bluetooth

Bluetooth 4.0+EDR

Speaker

Single speaker8±15% ohm

WLAN

Support 2.4G+5G, Support 802.11a/b/g/n mode and

WEP/WPA/WPA2-PSK/AES/WAPI PSK/802.1*EAP Encryption protocol

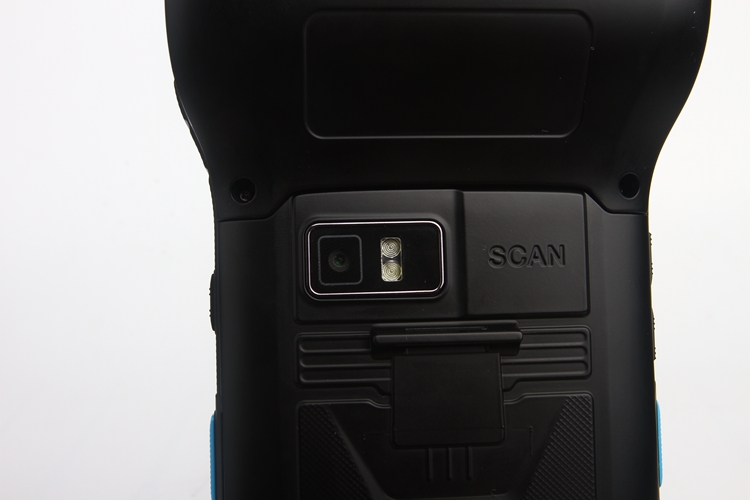

Camera

8.0 Mega Pixel rear camera; 2.0 Mega Pixel front camera; Auto focus; with LED light

Battery

Li-Polymer 4000mAh

Standby Time

One week

Duration

8 hours ( full function )

IOT FunctionsRFID, Barcode

IOT Barcode

1D Laser Barcode Scanner2D Barcode Scanner (optional)

1D Barcode

Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E,Codebar, I nterleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC etc.

2D Barcode

2D Barcode Scanner, Support both 1D and 2D, Chinese sensible code (optional)

IOT RFID

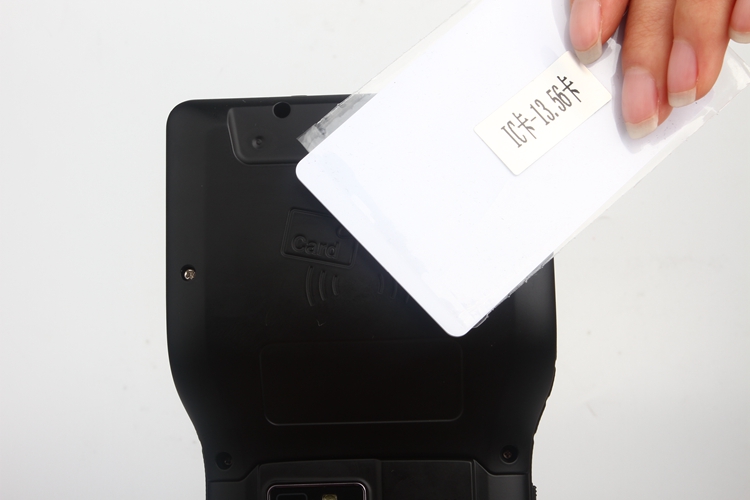

Fully support NFC. Support 14443A/B15693 Protocol, Reading Distance 2cm~5cm, reading position, battery cover.

Optional: Build-in UHF RFID, support EPC C1/G218000-6C reading and writing tags

Optional: 2.4G active RFID module, reading distance can reach 30~50m

Working Conditions

Operation Temperature

-25 ~ 65

Storage Temperature

-30 ~ 70

Humidity

0 ~ 95%

Product Features

Gravity Sensor  Support

Light Sensor  Support

Distance Sensor  Support

Microphone     Support

Receiver     Support

Vibrator        Support

Accessories

Accessories

4000mAh Battery x1

USB cable x1

Power Adapter x1

User Guide x1
