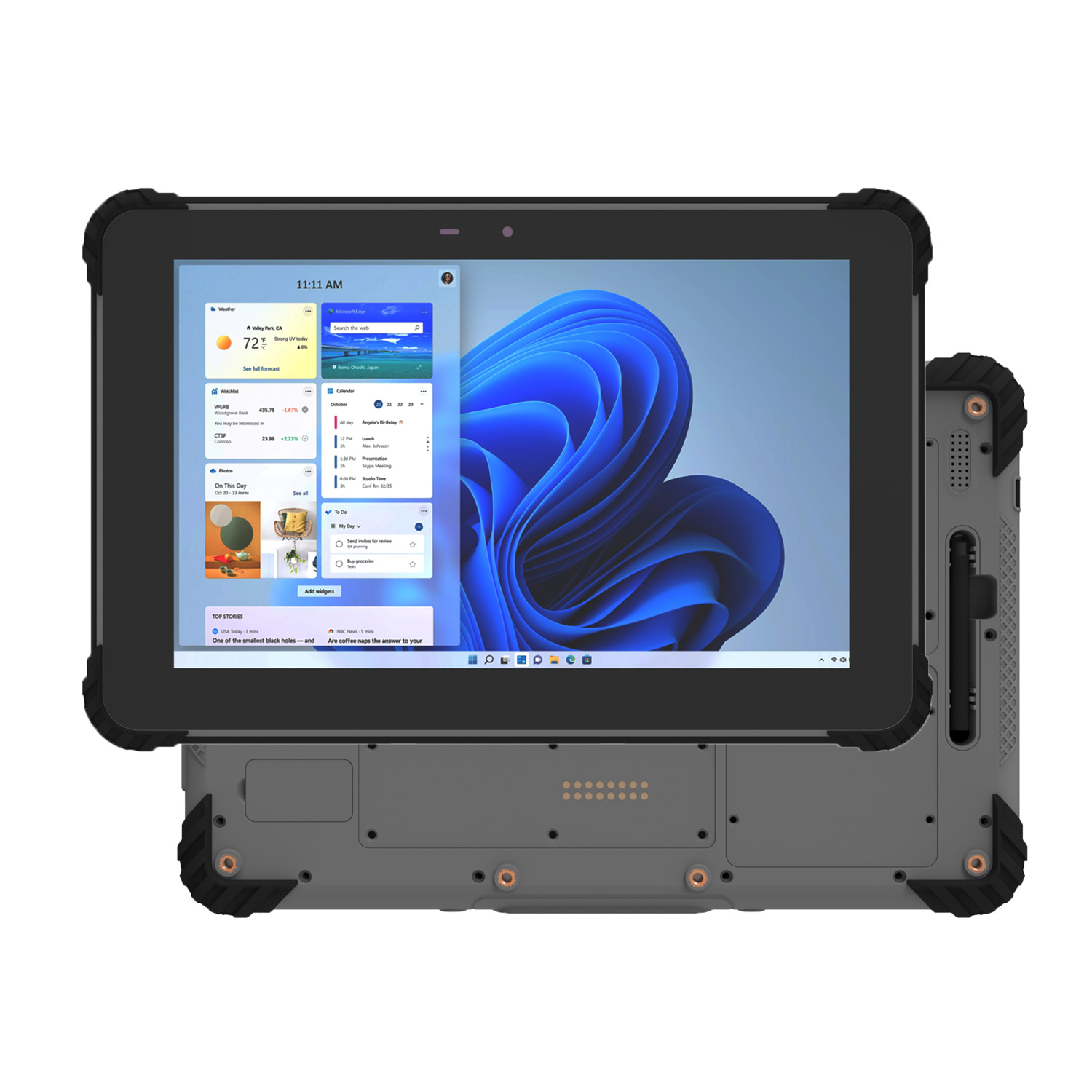

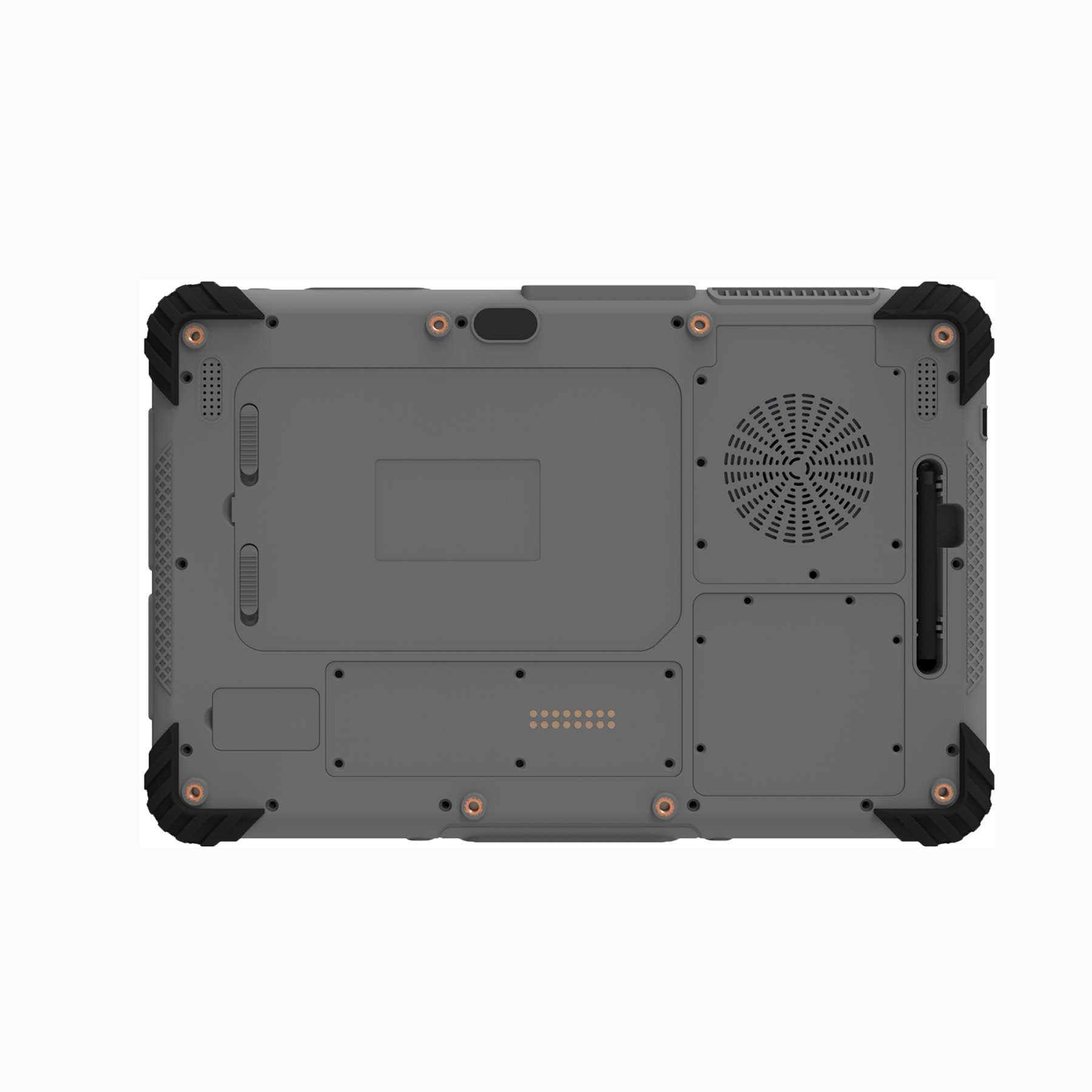

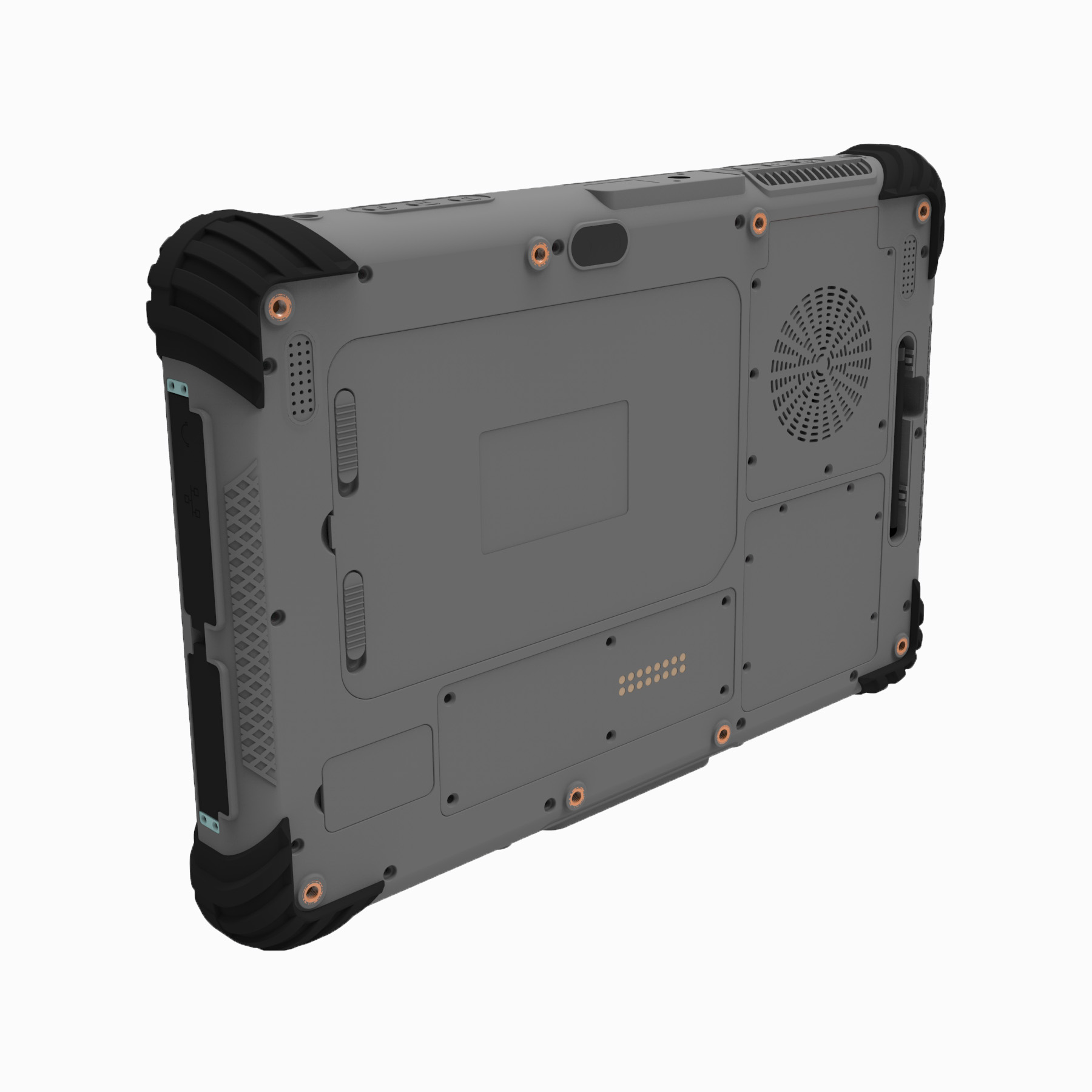

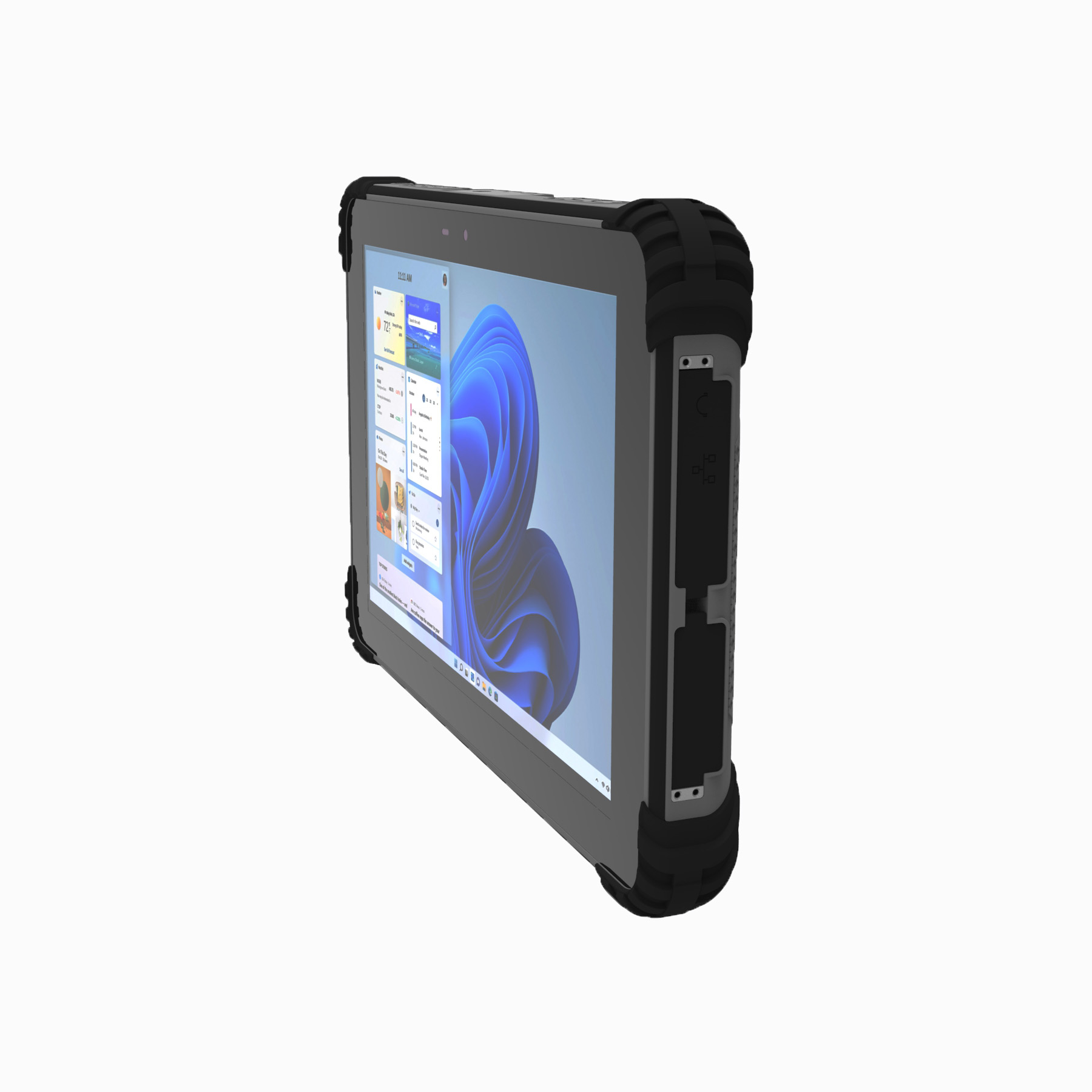

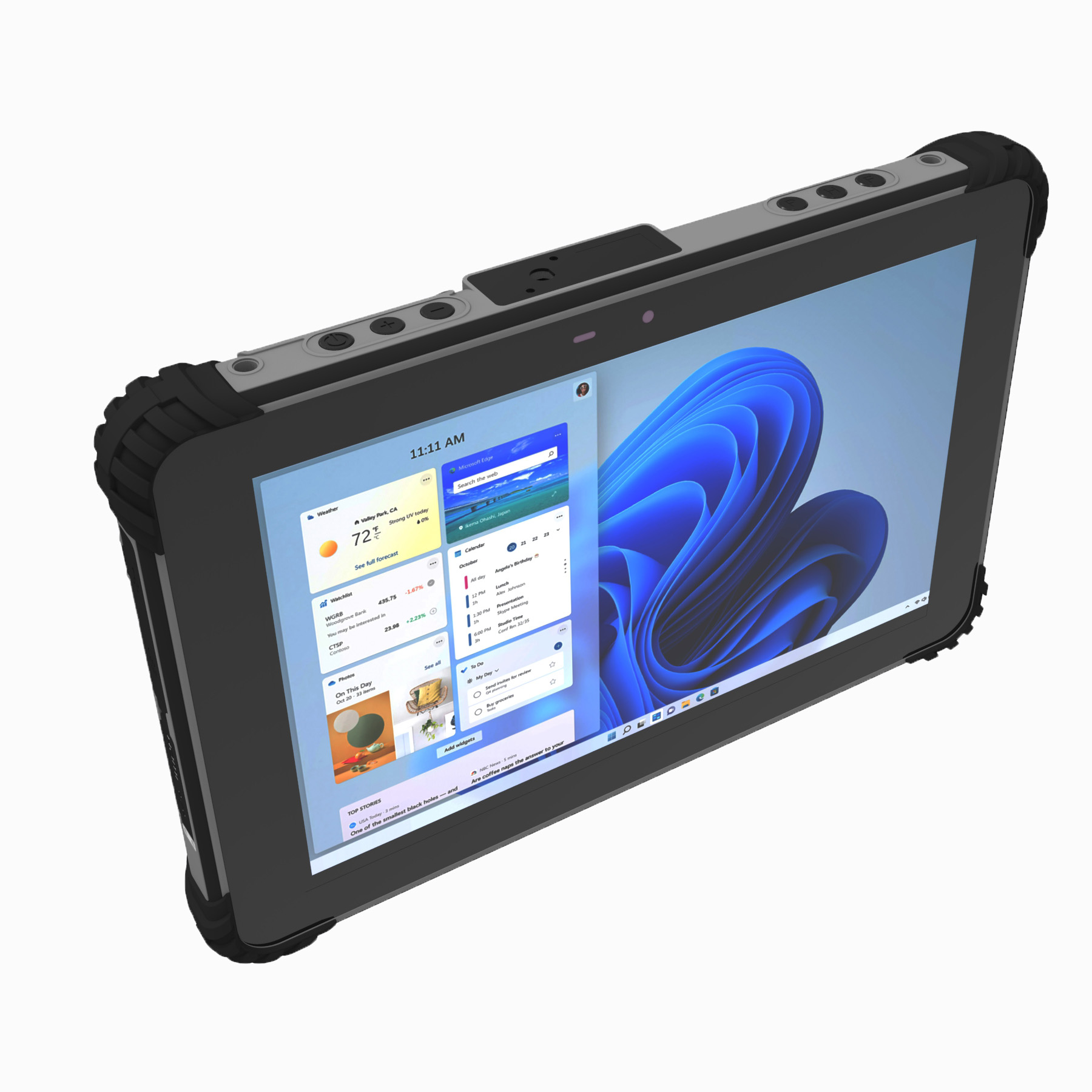

Product Introduction

OS Windows 11 Pro Windows 10 Pro/Iot Optional
CPU "Intel I5-1235U
10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W" "I7-1255U Optional
10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W"
GPU Intel® Iris® Xe Graphics 80EU I7: Intel® Iris® Xe Graphics 96EU
RAM/ROM 16GB/512GB 8GB/256GB; 32GB/1TB Optional
LCD 10.1 inch; 1200*1920; 450nits SQ101D
Touch Screen 10 Point Touch Support stylus
Camera Front: 5MP;  Real: 8MP 5M/13M optional
Power 8000mAh，7.6V lithium battery (45.6Wh) "Charging：2.5H (fast charging)
Discharge：8H (playing video)"
DC4.0, 12V 4A DC input Supports Type-C 65W fast charging
WWAN "FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28
TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8
GSM: B2/B3/B5/B8" "EC25-AUX
(5G customizable)"
GPS BDS, GPS, GLONASS
WIFI "802.11a/b/g/n/ac/ax Wireless Internet  Wireless AP
( Mobile AP )2.4G, 5G" Intel® Wi-Fi 6 AX201
BLUETOOTH 5.2 Version
NFC 13.56 MHz, Distance: 7-15mm ISO14443; TYPE A; Mifare
SPEAKER 1.5 Watt
Sensor "1. Light Sensor
2. Acceleration Sensor
3. G-Sensor"

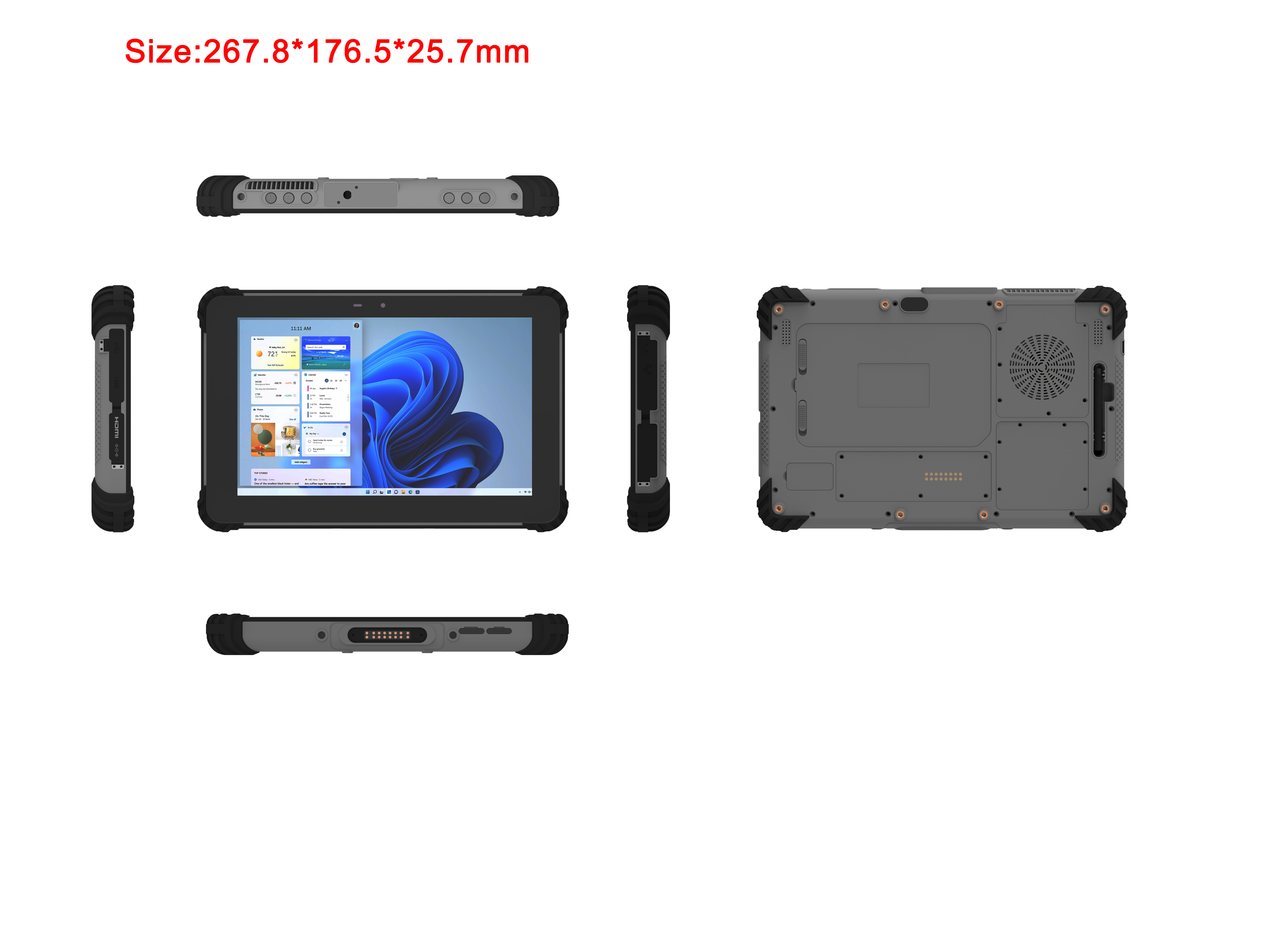

Size
Weight 1.2KG
Language Multi language
"Interface
In/Out Port" "1. DC 12V 3A ∮4.0mm
2. HDMI Type A x1,Audio and video output
3. USB Type_A：USB3.2 Gen1 x2
4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging)
5. Earphone：∮3.5mm headphone jack x1
6. RJ45：Support Gigabit Ethernet
7. RS232：Standard DB9" "Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232"
Casing Material ABS/PC
Button V+ -, Power, "F" for Barcode Scan Customized Button: P,H
1D/2D Barcode Optional Honeywell N4680 Optional
UHF RFID Optional M500, Distance: 3M; external
Fingerprint Optional AMF60 Optional
High Precision GPS Optional UM960; TU101 Optional
Accessories "1. Blue Box
2. DC Charger (12V 4A)
3. Carry strap
4. Bag & Screw
5. Wrist strap" "Optional:
1. Docking Station
2. Car Holder
3. Car Docking"
"Multi-Media
(Hardware Decoding)" "1. Photo Viewer:  BMP, JPG, GIF, PNG
2. Video Format:  MEPG 1/2/4,H.263/H.264,
RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
3. Audio Format:  MP3,WMA,WAV,OGG,FLAC,ALAC,
APE,AAC,AC-3,DTS (need license)"
Proof Degree "Anti-dust & Waterproof  IP65-67
Dropping Resistance 1.2 meter"
Certification "1. MIL-STD-810G
2. ISO
3. MSDS"
Temperature "Storate Temperature:   -25 °C to 80 °C
Operation Temperature:  -20 °C to 60  °C"
