Product Introduction

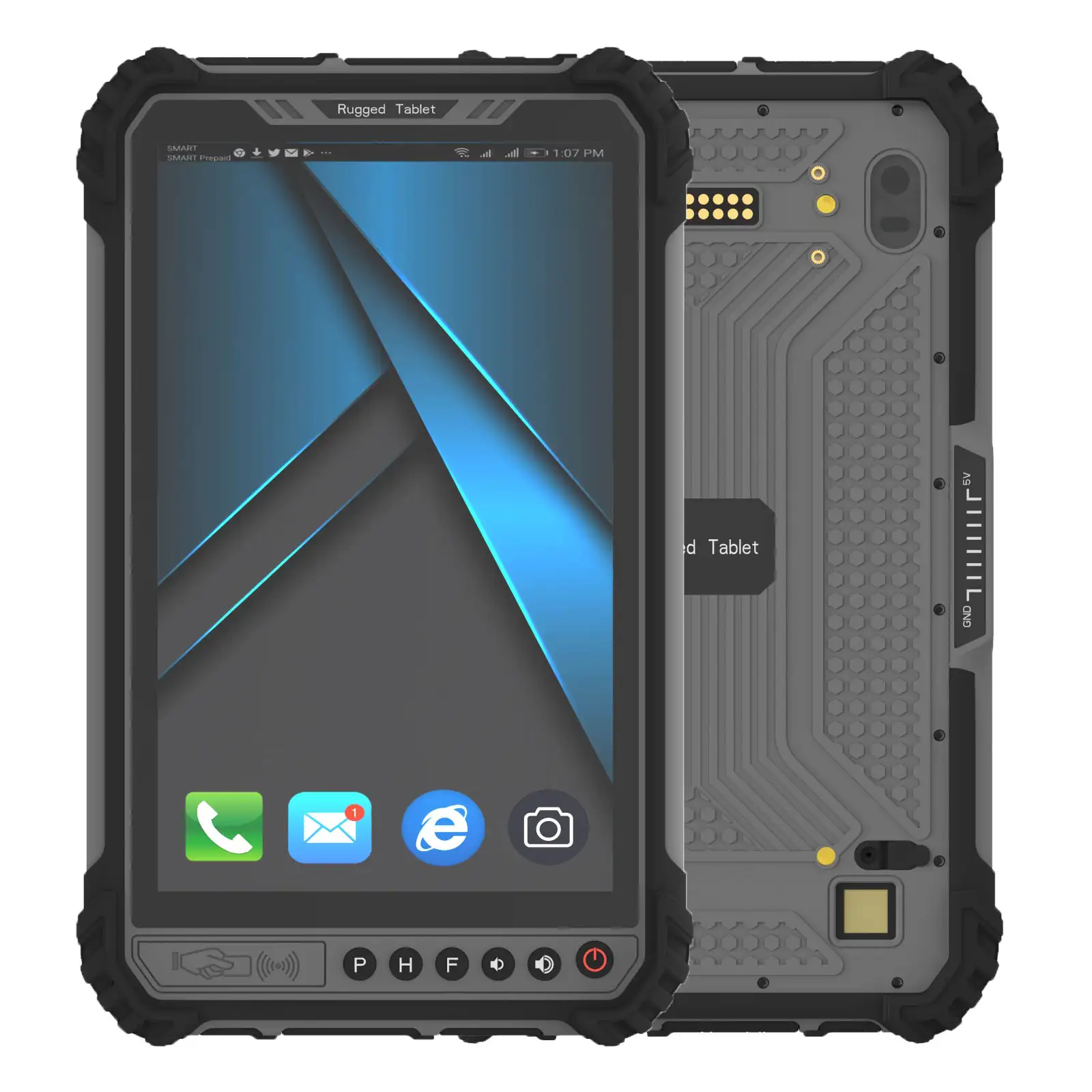

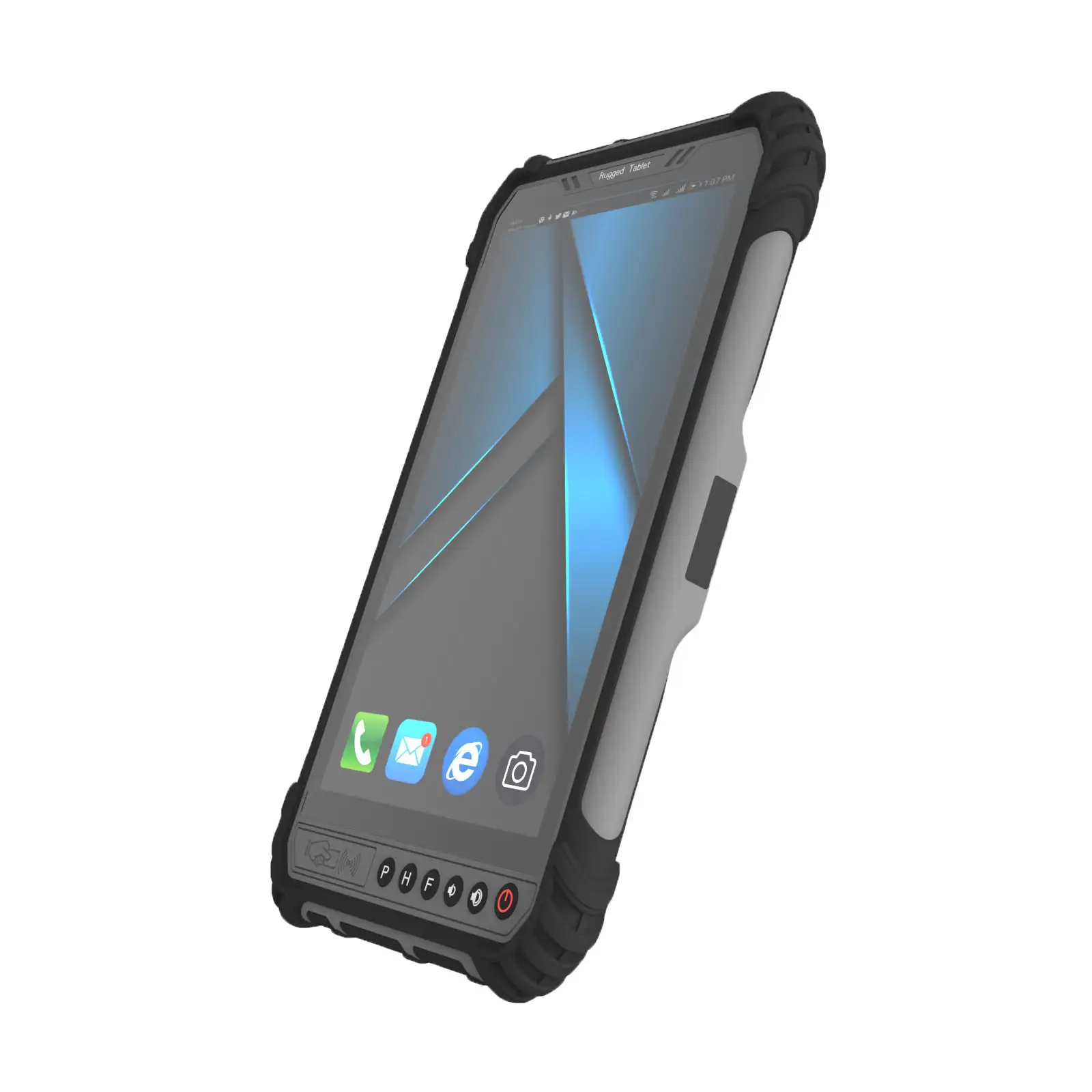

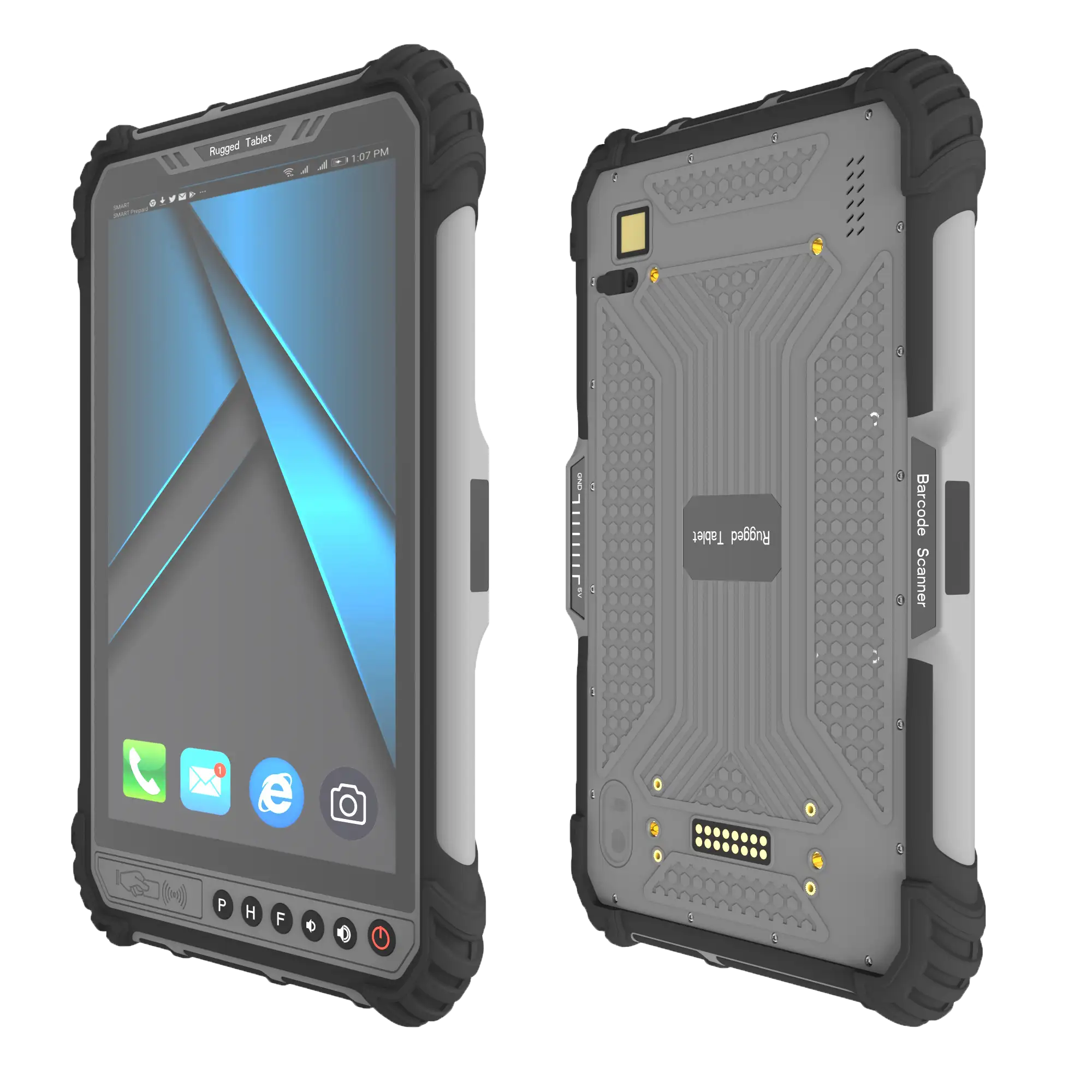

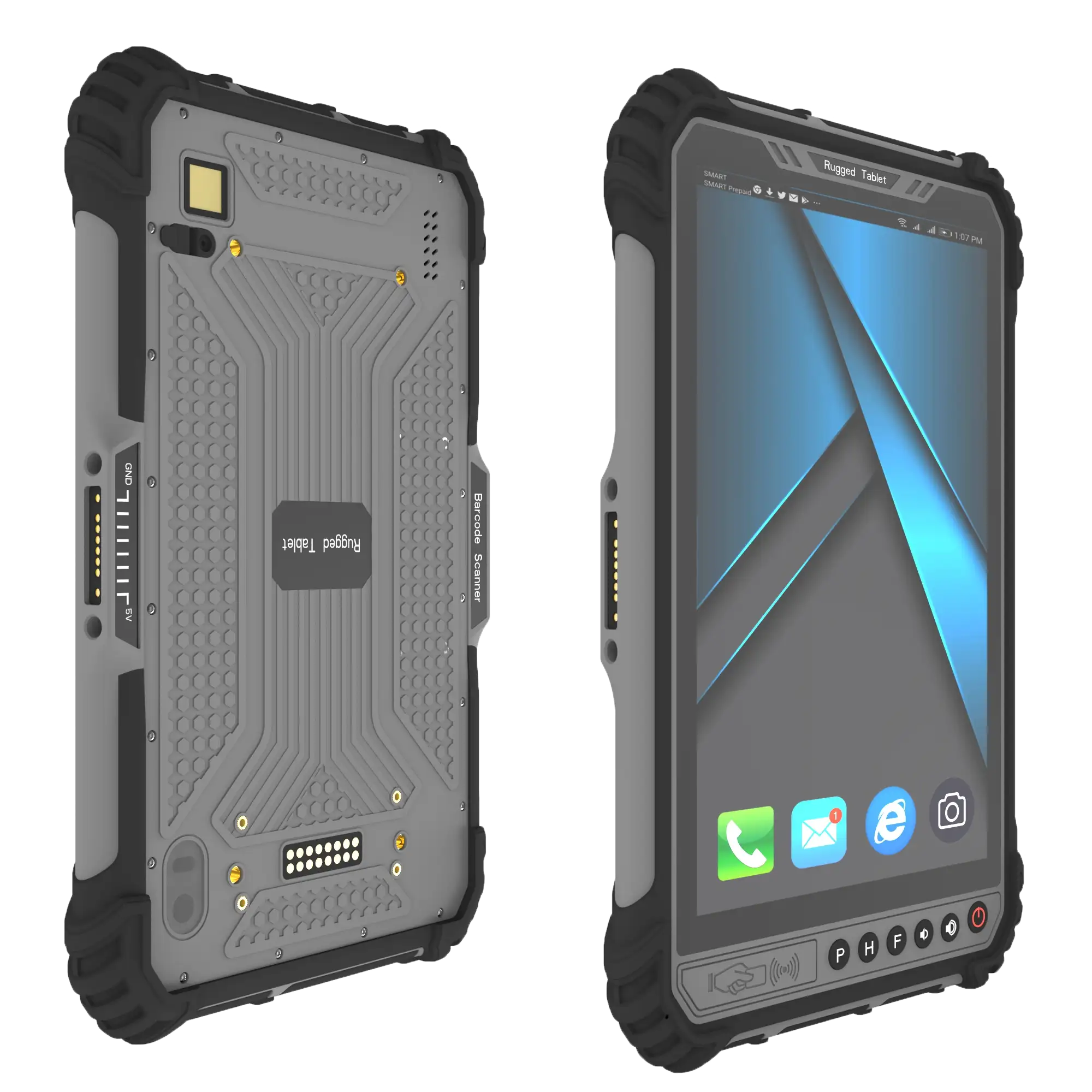

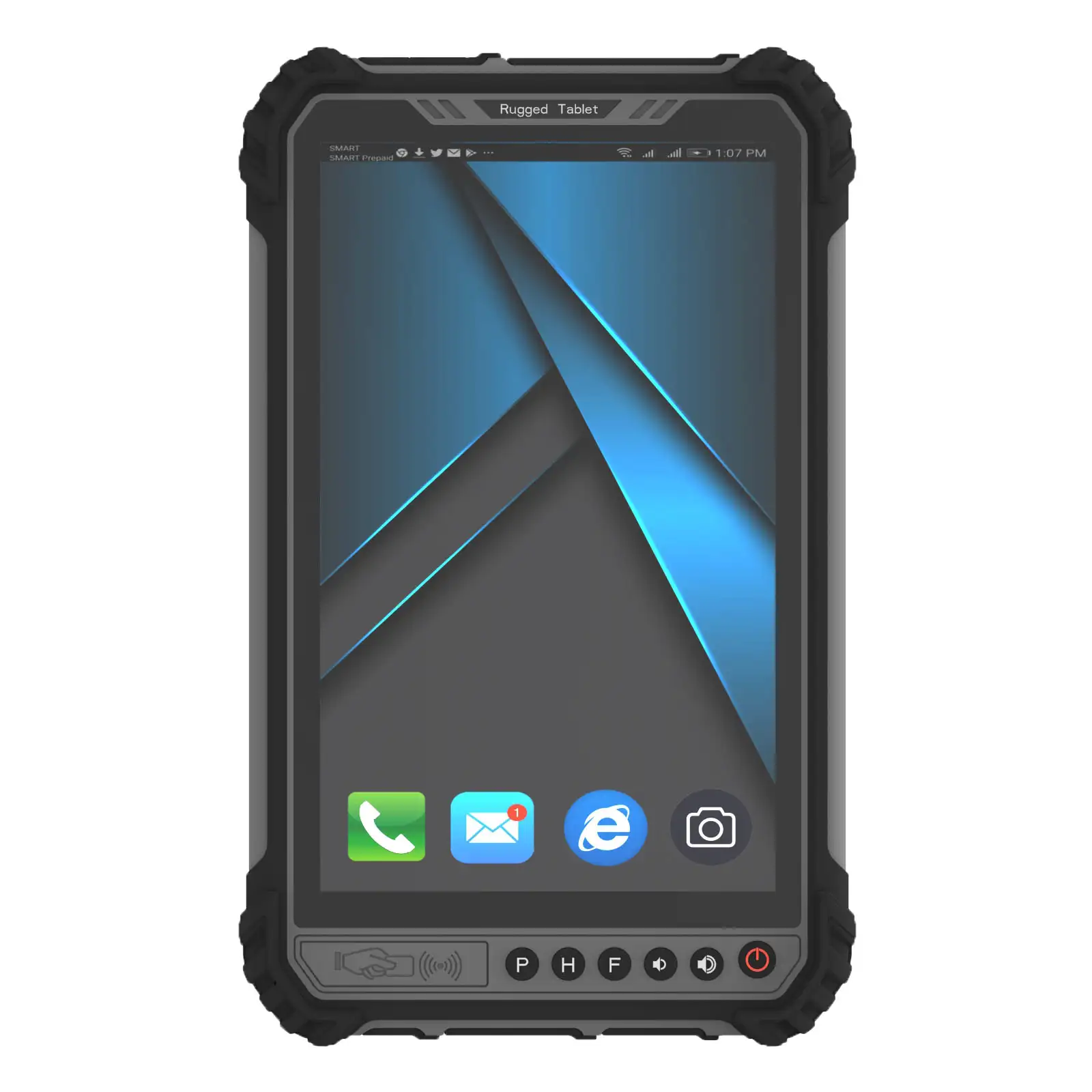

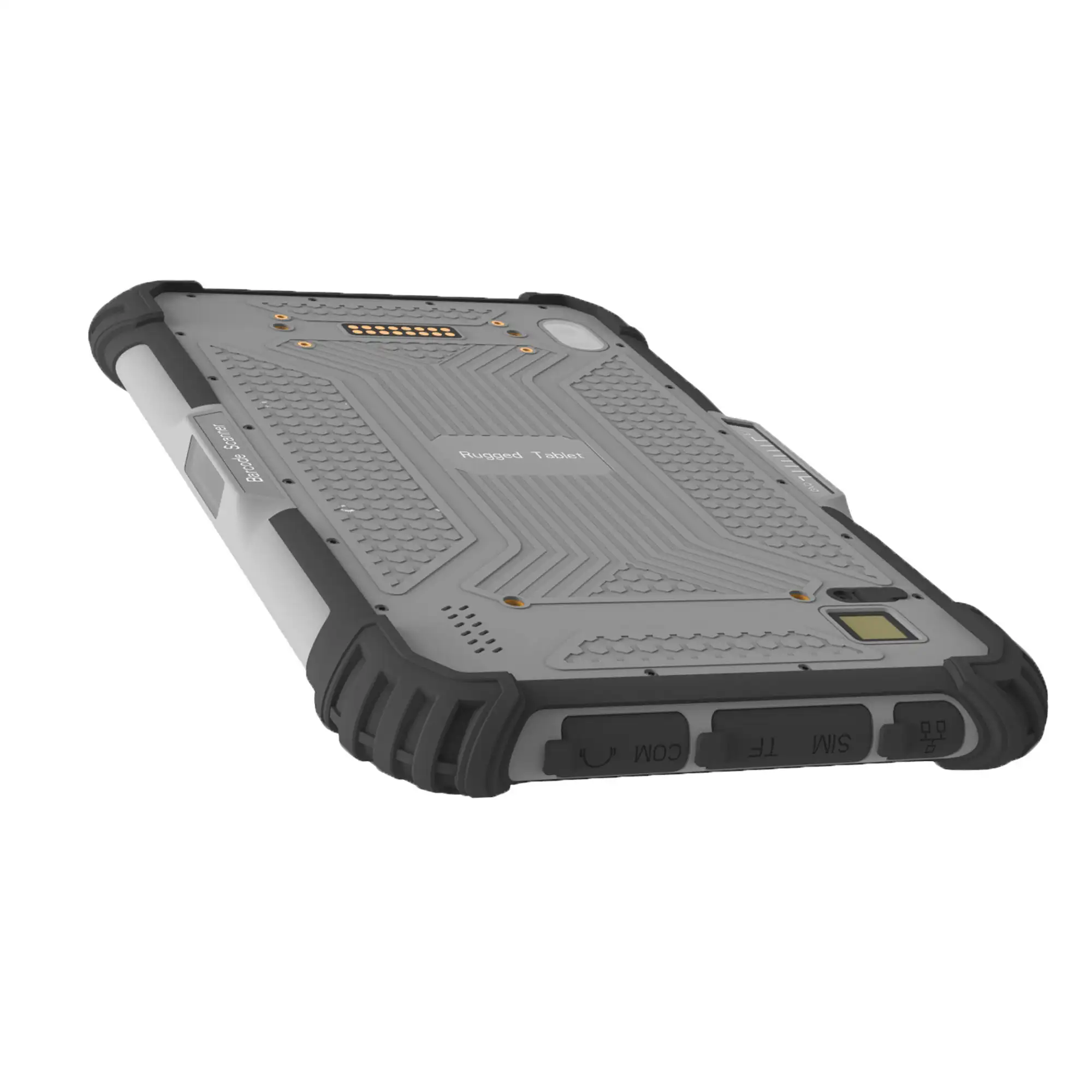

8 inch android 16 industrial rugged tablet
| OS | Android 16.0 | |
| CPU | MTK MT6789 (Octa Core, Octa Threads; 2.2GHz) |
2
× Arm Cortex-A76@2.2GHz 6 × Arm Cortex-A55@2.0GHz |
| GPU | Mali-G57 MC2 | |
| RAM/ROM | 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional |
| LCD | 8 inch; 1200*1920; IPS |
350nits (TYP) 390nits (MAX) (800*1280)1000nits Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Rear: 13MP | Flash light |
| Power and Battery | 7800mAh; 3.8V | |
| WWAN | 4G LTE,3G WCDMA,GSM |
FDD-LTE:
B1/B2/B3/B5/B7/B8/B12/B17/B20/B28 TDD-LTE: B34/B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631B) |
| WIFI |
802.11a/b/g/n/ac
Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
|
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC |
Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
|
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor |
1.
Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope |
|
| Size | 234*144*16.8mm | |
| Weight | 630±20g | |
| Language | Multi language | |
|
Interface In/Out Port |
1.
Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*15mm 6. USB 2.0 *2 7. RS232*1(mini-USB) |
Bottom
pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan |
Customized
Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional |
NLS-N1
Optional M1 Optional SE2707 Optional |
| UHF RFID | Optional |
American
standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
|
European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M |
||
| Fingerprint | Optional |
E064N
Optional ZAZ-0A0 Optional 1020A Optional |
| Accessories |
1.
Blue Box 2. DC Charger (5V 3A) 3. Wrist strap 4. Screw |
Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust
& Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Certification |
1.
MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C |
|
| Temperature |
Storate
Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
